Legacy Model

Classic Garden Pump 3500/4 Jet

Article No. 1708-20

Spare Parts
Manuals
Specifications

Spare Parts

Classic Garden Pump 3500/4 Jet

View / print technical drawing

Manuals for your product

IPL, GARDENA, Duo-Pomp 5000/3 SGP, 01471-20, 2006

Spare Parts List

View

IPL, GARDENA, Garden Pump 3000/3 Jet, Garden pump 3000/4 Jet, Garden Pump 3500/4 Jet, 01704-20, 01706-20, 01708-20, 2010

Spare Parts List

View

OM, Gardena, 814, 1,25 l, Pressure Sprayer, 2017-05

Operators Manual

View

OM, Gardena, 867, 869, 3 l, 5 l, Pressure Sprayer, 2019-03

Operators Manual

View

OM, Gardena, 822, 828, 5 l, 5 l, Pressure Sprayer, 2019-06

Operators Manual

View

OM, Gardena, 867, 869, 3 l, 5 l, Pressure Sprayer, 2017-09

Operators Manual

View

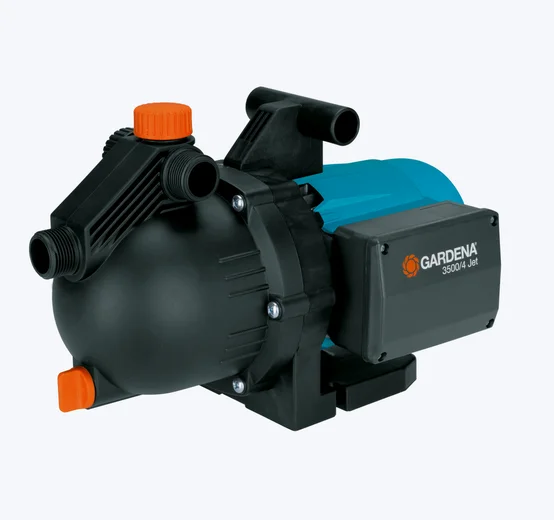

Classic Garden Pump 3500/4 Jet

The starter models with high suction and pressure performance. Lightweight and robust. Versatile in use: for watering, for increasing pressure, for pumping rainwater and chlorinated swimming pool water. Salt water, aggressive and easily combustible substances as well as food must not be pumped. High reliability due to double seal system between motor and pump mechanism. Automatic protection of the maintenance-free capacitor motor from overload by thermal cut-out. Water drain plug for draining the garden pumps in case of risk of frost. Connecting thread 33.3 mm (G 1). 4-colour display carton.

Technical Specifications

Commercial reference

1708-20

GTIN-13/EAN

4078500170802

Specifications

Power rating

700 W

Max delivery capacity

3300 l/h

Max self-priming suction

7 m

Max delivery head

40 m

Expand more

Commercial reference

1708-20

GTIN-13/EAN

4078500170802

Specifications

Power rating

700 W

Max delivery capacity

3300 l/h

Max self-priming suction

7 m

Max delivery head

40 m

Weight (complete product w/o side packed articles)

6.5 kg

Cable length

1.5 m

Power cable type

H05 RNF

IP code

IP X4
